ANZE S series digital cutting machine S1-2516
ANZE S series digital cutting machine is used for sample making or small production orders. Varies types of vibrating knives can be installed to cut different kinds of flexible materials, mainly for sample room or real leather cutting.
Main features:
- Computer-aided drawing processing, no need to make mould.
- For production of small orders, vary orders, and multi-style orders.
- Widely used for industries of shoe, bag, garment, automobile, and so on.
- Clear friendly operation interface; simple and easy to operate.
Machine specifications:
| s1-1216 | s1-2516 | s1-2518 | s1-2520 | |
| max cutting area(mm) | 1200*1600 | 2500*1600 | 2500*1800 | 2500*1800 |
| max cutting speed ( mm / S) | 1500 | 1500 | 1500 | 1500 |
| max material thickness(mm) | 30 | 30 | 30 | 30 |
| cutting precision (mm ) | 0.1(+ - ) | 0.1(+ - ) | 0.1(+ - ) | 0.1(+ - ) |
| feeding mode | automatic | automatic | automatic | automatic |
| Power | 380v/7.5kw-11kw | 380v/7.5kw-11kw | 380v/7.5kw-11kw | 380v/7.5kw-11kw |
| drawing | DXL,hpgl | DXL,hpgl | DXL,hpgl | DXL,hpgl |
| port | usb or ethernet | usb or ethernet | usb or ethernet | usb or ethernet |
| material fixing | vacuum | vacuum | vacuum | vacuum |
| Machine Dimensions(Mm) | 2400*2400*1200 | 3600*2400*1200 | 3600*2600*1200 | 3600*2800*1200 |

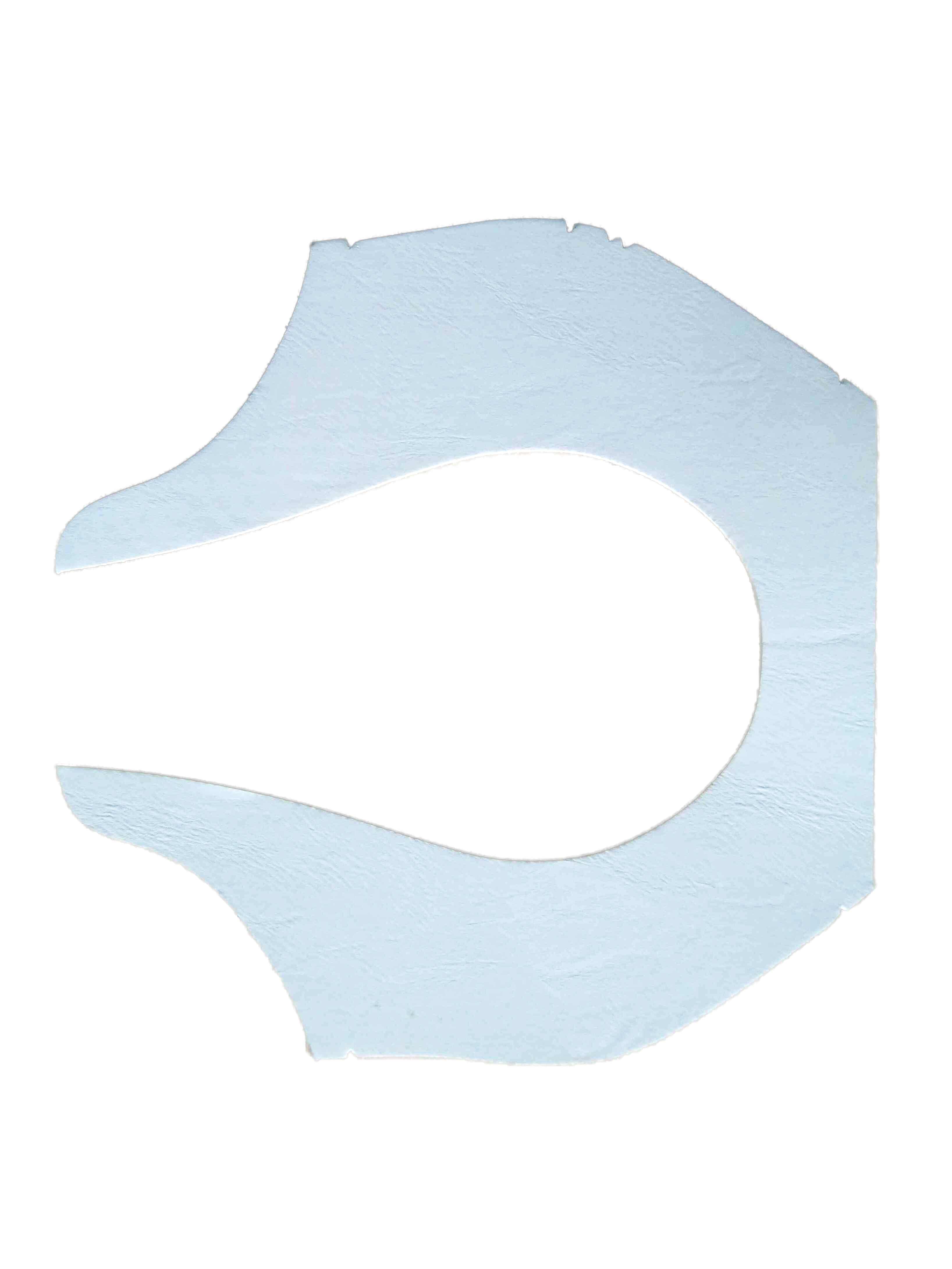

Sample:
|
|
