Shoe Upper Leather Punching Machine Stable Performance High Efficiency

Dongguan Anze Automation Equipment Co., Ltd.
Contact Now
    Buy cheap Shoe Upper Leather Punching Machine Stable Performance High Efficiency from wholesalers

    Buy cheap Shoe Upper Leather Punching Machine Stable Performance High Efficiency from wholesalers
    • Buy cheap Shoe Upper Leather Punching Machine Stable Performance High Efficiency from wholesalers

    Shoe Upper Leather Punching Machine Stable Performance High Efficiency

    Ask Lasest Price
    Brand Name : ANZE
    Model Number : B2-800 PLUS
    Payment Terms : T/T
    Delivery Time : 7-14 working days
    Price : Negotiation
    Supply Ability : 10
    • Product Details
    • Company Profile

    Shoe Upper Leather Punching Machine Stable Performance High Efficiency

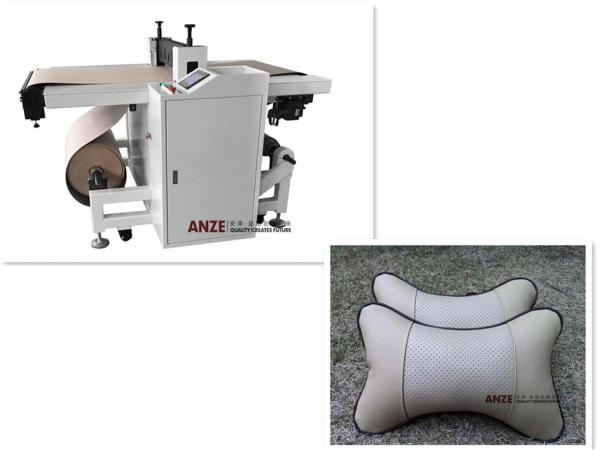

    ANZE PLUS type mould leather punching machine car seat headset B2-800PLUS
    Machine freatures:
    - Punch spacing can be easily set on the touch screen, no need to be adjusted the one-way bearing as other brand machines.
    - Feed material precisely by servo motor.
    - Mold depth is adjusted easily by the handle, less demanding on the skills of the operator.
    - Grey paper unwinder and rewinder make the working area neat and tidy.
    - Mold is processed by CNC machine with high precision , and it is easy to install and disassemble.
    - The paper weight under material is 550g/m², which saves the cost a lot.
    Machine specifications:
    B2 - 600
    Mold Can Stop At Highest Position?Automatic
    Gap On The Leather After Restart ?No
    Feeding By Servo Motor ?Yes
    Touch Screen Control?Yes
    Max Punching Width (Mm)800
    Punching Speed (Stroke / Min )1 - 240
    Punching Force (Kgf)800
    Power3kw ,380 V ,50hz
    Net Weight (Kg)1020
    Gross Weight (Kg )1150
    Machine Size(Mm)1900*1280*1250
    Packing Size(Mm)1950*1800*1400

    Sample:
    Quality Shoe Upper Leather Punching Machine Stable Performance High Efficiency for sale
